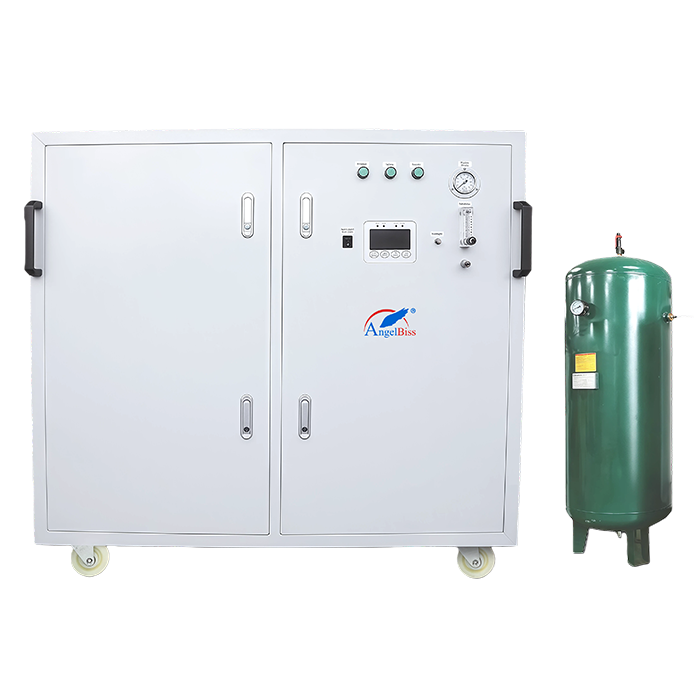

ANGEL-60HPT
• Applicable for: 5 sets of anesthesia machines/ventilators or 15 hospital beds;
• Automatic start and stop by power connection, high efficiency and energy saving;
• Adjustable pressure range: 1-5 bar;
• Oxygen flow rate: 1-60 L/min;
• Average oxygen concentration: 93%
• Automatic start and stop by power connection, high efficiency and energy saving;
• Adjustable pressure range: 1-5 bar;
• Oxygen flow rate: 1-60 L/min;
• Average oxygen concentration: 93%
Product Description
Technical Specifications
Model | ANGEL-60HPT |
Max. Oxygen Flow Rate | 60L/min |
Oxygen Concentration | 93%±3% |
Pressure Adjustment Range | 0.14~0.7 Mpa(20.3~101psi) |
Max. Pressure for Auto Stop | 0.7 Mpa (101psi) |
Min. Pressure for Auto Start | 0.5 Mpa (72psi), Customizable |
Noise Level | ≤65dB(A) |
Voltage | AC 380 V |
Power | 6650W, or as the case may be |
Alarm Function | Yes |
Working Mode | Continuous Operation |
Net Weight | 242kg |
Gross Weight | 269kg |
Product Dimensions | 1290x730x1200mm |
Package Dimensions | 1330*780*1380mm |
Note: This product cannot be connected to ventilators and anesthesia machines. | |
