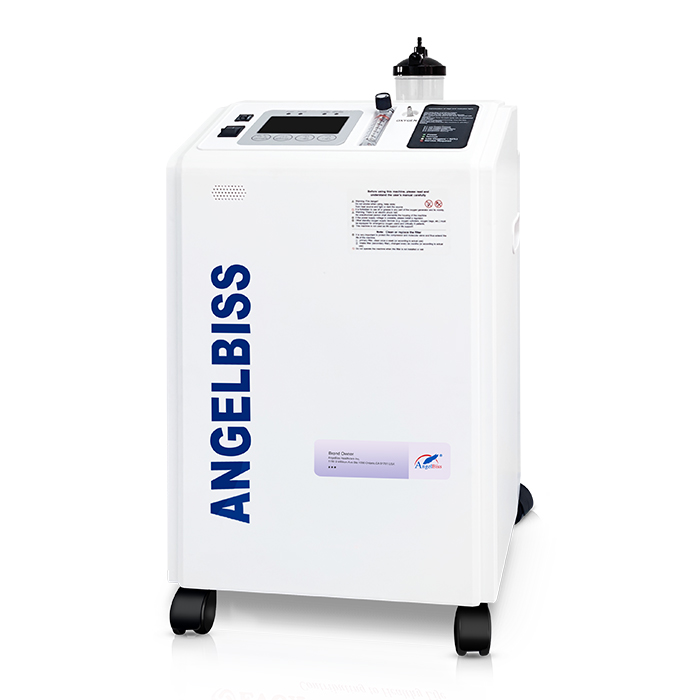

The best compact design for high pressure
Generators for 40LPM. Provides over 93% pure oxygen. AngelBiss holds all
self-developed technology on high pressure oxygen generators which can supply
over pressure from 2 bar to 6 bar.
1- Robust shell in excellent quality
2- Easy to adjust pressure
3- 93%±3% oxygen purity output
4 – Portable and wheels
Technical Specifications
|
Product Model |
LINER-40SP |
|
Max. oxygen flow |
40LPM |
|
Oxygen Concentration |
90% ~ 96% |
|
Pressure adjustment range |
0.14~0.6 Mpa(20.3~87psi) |
|
Noise |
≤55dB(A) |
|
Volts |
AC 220V/110V ± 10%, 50/60 ± 1Hz |
|
Power |
3550W, or depends |
|
Alarm |
Yes |
|
Work mode |
Continuous |
|
260kg, for reference only |
|
|
Gross Weight |
330kg, for reference only |
|
Product Size |
890x630x1780mm, for reference only |
|
Package Size |
940*680*1900mm, for reference only |
Reference application
1 – For diving
2- For aqua
3- For industrial
4- For your DIY options
Note: This product can not attach to ventilators and anesthesia machines.
