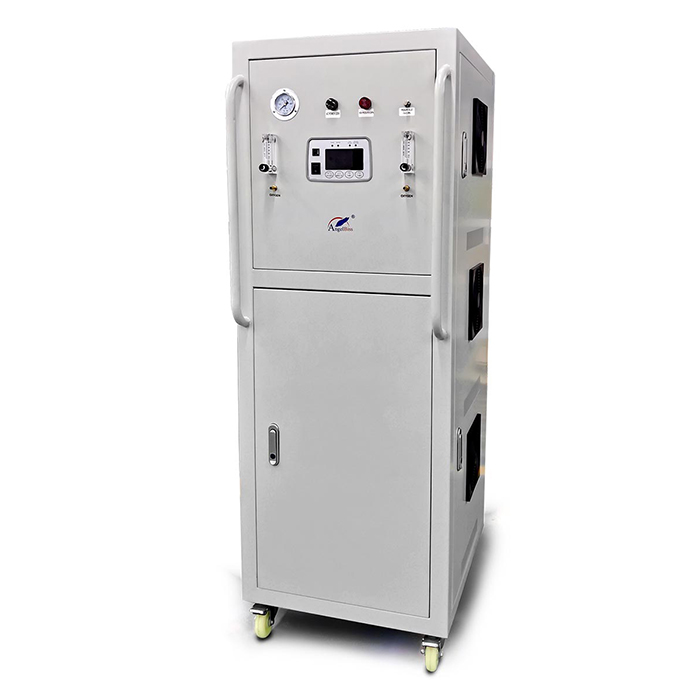

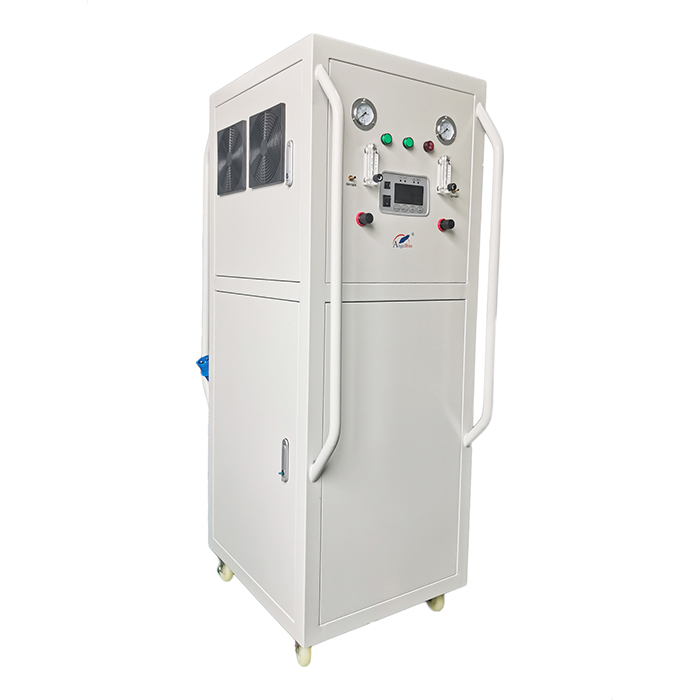

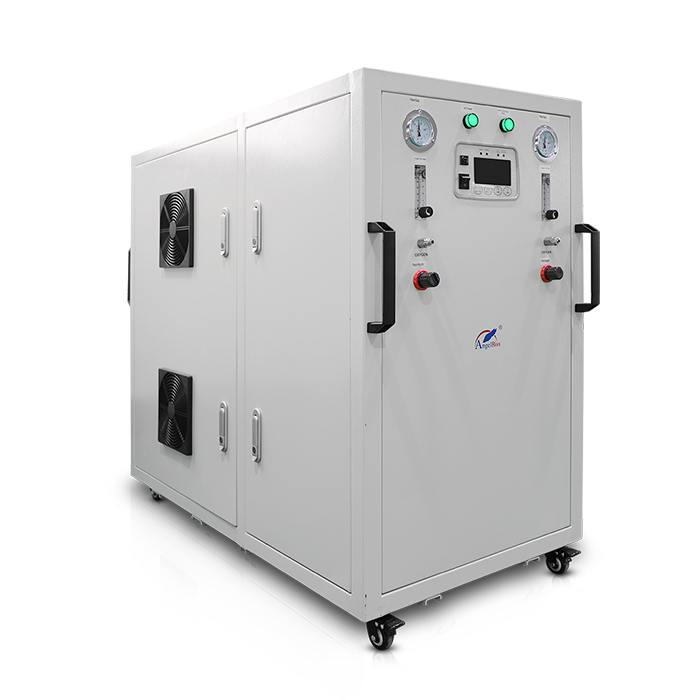

20LPM High Pressure Oxygen Generator (Auto Run)

Oxygen Flow 1 to 20Liter adjustable with 93%±3% oxygen purity output
Oxygen pressure 2 to 5bar adjustable
Oxygen Purity Display by Numbers (Accuracy 00.0%)
Large 6’ LED Light Smart Touch Display
Accumulated total running hours
Automatically shut on/off, energy saving system
Compact design
Remote Control (Optional)
Voice Control (Optional)
Rainy Proof (Optional)

Message

Product Description

Reference application

1- For single ventilator or anesthesia machine

2 – For high pressure HBOT

3- For aqua, ozone, industrial

4- For your DIY options

Technical Specifications

Product Model	ANGEL-20HPT
Max. oxygen flow	20LPM
Oxygen Concentration	90% ~ 96%
Pressure adjustment range	0.14~0.5 Mpa(20.3~72.5psi)
Max Auto Cut Off Pressure	0.7 Mpa (101psi)
Min Auto Cut On Pressure	0.5 Mpa (72.5psi), customized available
Noise	≤55dB(A)
Volts	AC 220V/110V ± 10%, 50/60 ± 1Hz
Power	2400W, or depends
Alarm	Yes
Work mode	Intermittent by auto control
Net Weight	180kg
Gross Weight	201kg
Product Size	13006001070mm
Package Size	14107001250mm
