Reference application
1- For small hospitals, clinics
2- For aqua, nano bubble, diving
3- For healthcare centre
4- For your DIY options
Technical Specifications

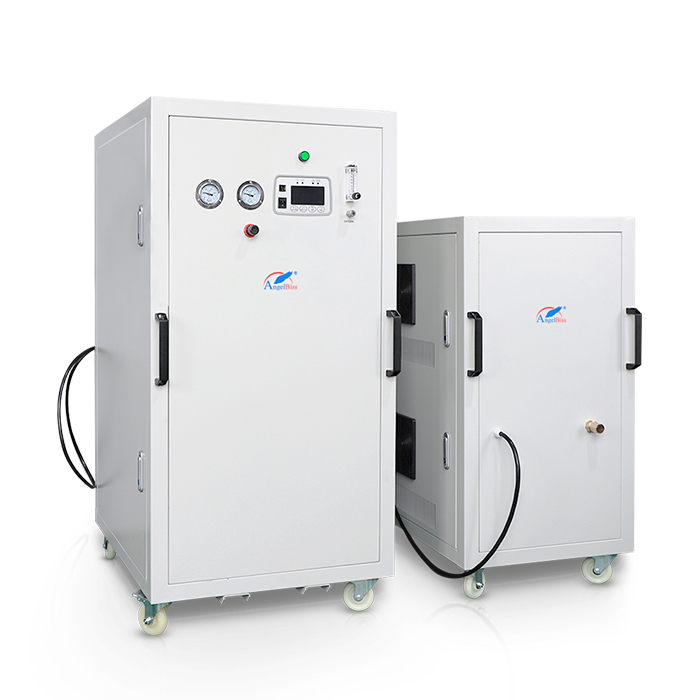

Product Model | ANGEL-60HPT-NN | ANGEL-100HPT-NN |
Max. oxygen flow | 60LPM | 100LPM |
Oxygen Concentration | 90% ~ 96% | |
Pressure adjustment range | 0.14~1.3 Mpa(20.3~188.6psi) | |
Max Auto Cut Off Pressure | 1.3 Mpa (188.6psi) | |
Min Auto Cut On Pressure | 1 Mpa (145psi), customized available | |
Noise | ≤65dB(A) | |
Volts | AC 380 V | |
Power | 6650W, or depends | depends |
Alarm | Yes | |
Work mode | Intermittent by auto control | |
Net Weight | 276kg, reference only | depends |
Gross Weight | 303kg, reference only | depends |
Package 1 Size | 1330*780*1380mm, reference only | depends |
Package 2 Size | 1630*780*1780mm, reference only | depends |
