Products

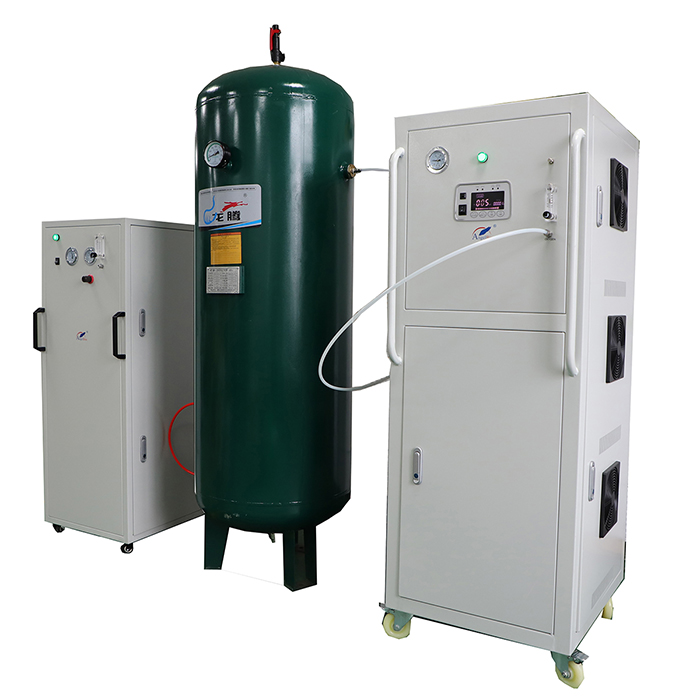

60-130LPM High Pressure Oxygen Generator (Auto Run)
Oxygen Flow adjustable with 93%±3% oxygen purity output
Oxygen pressure 2 to 5bar adjustable
Oxygen Purity Display by Numbers (Accuracy 00.0%)
Large 6’ LED Light Smart Touch Display
Accumulated total running hours
Automatically shut on/off, energy saving system
Compact design
Remote Control (Optional)
Voice Control (Optional)
Rainy Proof (Optional)
Product Description

Reference application

1- For hospital

2- For aqua, nano bubble, diving

3- For healthcare clinics

4- For your DIY options


Technical Specifications

Product Model

ANGEL-60HPT

ANGEL-80HPT

ANGEL-130HPT

Max. oxygen flow

60LPM

80LPM

130LPM

Oxygen Concentration

90% ~ 96%

Pressure adjustment range

0.14~0.5 Mpa(20.3~72.5psi)

Max Auto Cut Off Pressure

0.7 Mpa (101psi)

Min Auto Cut On Pressure

0.5 Mpa (72.5psi), customized available

Buffer tank compacity

600L

Noise

≤65dB(A)

Volts

AC 380 V

Power

6650W, or depends

depends

depends

Alarm

Yes

Work mode

Intermittent by auto control

Net Weight

242kg

depends

depends

Gross Weight

269kg

depends

depends

Product Size

1290x730x1200mm

depends

depends

Package Size

1330*780*1380mm

depends

depends
